Wed Jan 01, 2020 Two new projections, three variants, some adjustments

At the beginning of 2020, I’d like to publish a little update.
So, here are two new projections, three new variants – and a few adjustments.

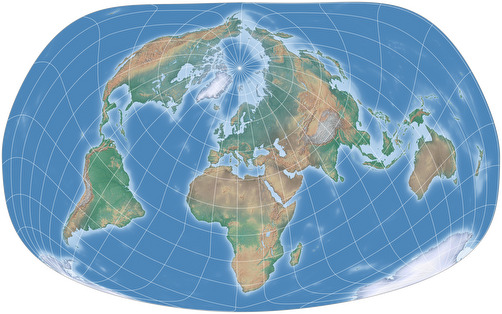

The Bertin-Rivière projection

Based on a 1953 drawing by Jacques Bertin, which most likely was not created using a mathematical formula, Philippe Rivière created this new projection in 2017.[1]
… Well, I am calling this a new projection, because in my opinion it differs too much from the original to be called Bertin projection. So I’m using the name that is also used by the software G.Projector:

Mathematically, it was built using the Briesemeister projection[2], which itself was derived from the Hammer projection – so, hey, maybe I should call it the Hammer-Briesemeister-Bertin-Rivière projection? 😉 Naaah…

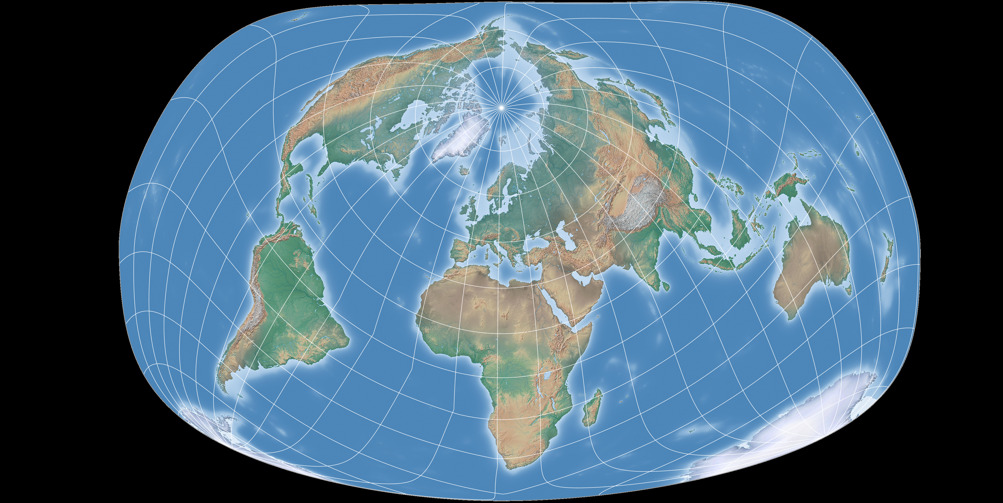

However, it is an interesting projection that keeps the distortions of the land masses low. Enjoy:

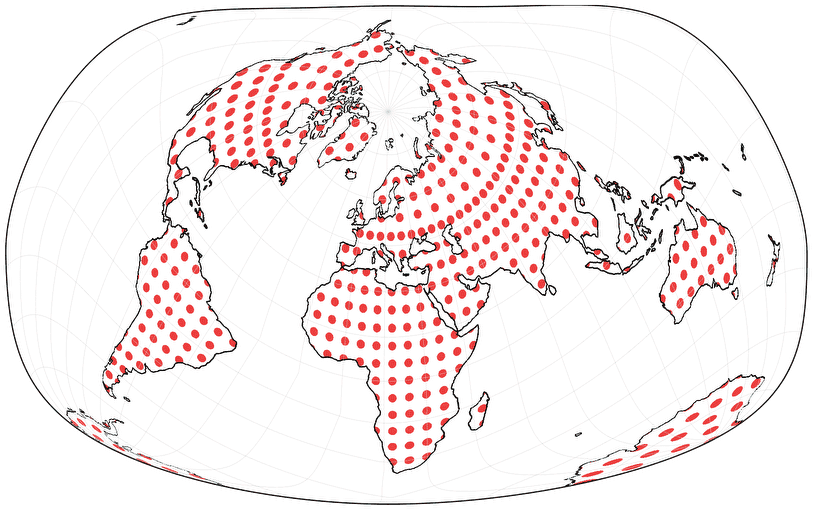

And to emphasize the specific distribution of distortions, here’s an image with the Tissot indicatrix displayed on land masses only (the usual Tissot rendition is of course available at the list on the website).

And here’s the usual image of the Tissot indicatrix, along with the mathematical parent projection Briesemeister, and both the interrupted and uninterrupted version of Sinu-Mollweide which is a bit similar.

Bertin-Rivière vs. Briesemeister
Bertin-Rivière vs. Sinu-Mollweide
Bertin-Rivière vs. Sinu-Mollweide (uninterrupted)

Györffy E

In 2018, János Györffy introduced a series of five minimum error projections[3], labelled A, B, D, E and F (C was discarded because there was no notable difference towards B).[4] His goal was to reduce both angular and areal distortions on aphylactic (compromise) pointed-pole projections with an outer shape that will »remind the viewer of the Globe«.
A and B are pseudocylindricals while D, E and F belong the class of lenticular projections.

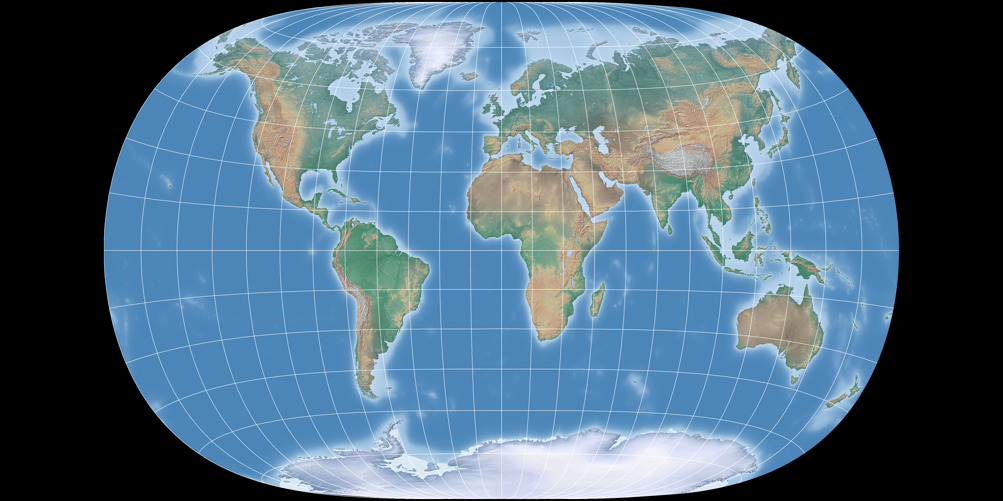

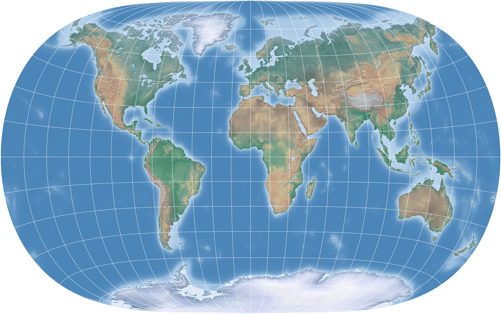

Regrettably, I can show but one projection out of this series, namely the Györffy E:

Let’s compare it to the Tissot indicatrix of some similar projections… ooops! There aren’t any!
Except for the Aitoff (which really doesn’t look similar), there are no lenticular pointed-pole compromise projections! So, let’s do the next best thing and compare it to some lenticular compromise projections with a pole line – there’s a bunch of them, so I selected a few having areal distortions which are roughly in the ballpark of Györffy E’s distortion values. Very roughly.

You also can compare the Györffy E directly to the six other projections using the following links…
(Note: The links trigger the Expert Mode of the comparison. For these pairings, it’s advisable to scroll down to the “scaled to same width” examples.)

Györffy E vs. Kramer VII
Györffy E vs. Winkel Tripel
Györffy E vs. Ginzburg V
Györffy E vs. Wagner IX.i
Györffy E vs. Wagner IX, Canters’ optimization
Györffy E vs. Wagner vii@65-76-60-40-168

Three new variants

Also, I’ve added three variants of projections that already have been on this website for some time…

The equirectangular projection is already listed in two variants, one using the equator as standard parallel (= plate carrée projection) and the other other one with standard parallels at 35.6° N/S.
You’ll read below why I felt obliged to add another variant, this time with standard parallels at 28° N/S.


The uninterrupted variant of Philbrick Sinu-Mollweide. You’ve already seen it above – I have to admit, I can’t remeber why I neglected to add it the day I added the interrupted version.


Hey, a Wagner variant! I don’t think you’ve seen one before! 😉

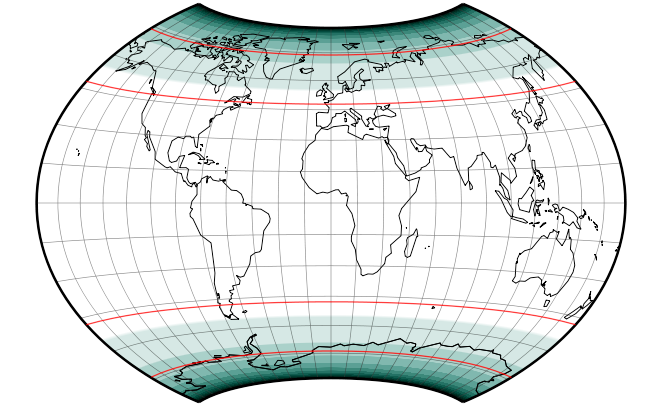

This variant (already shown above, too) is somewhere in between the Wagner BCW-A I and Canters optimization of Wagner IX. The Böhm notation[5] is Wagner vii@65-76-60-40-168, and for the lack of creativity, I’m using this as the projection’s name since March 26, 2021, it’s called Wagner BCW-A III.


There’s nothing special about this Wagner variant, I just… well, liked it.
To create this projection in Geocart, choose the generalized Wagner with following parameters:
a = 2.16538, b = 1.4769, m = 0.975032, m2 = 0.75955, n = 0.422222
In d3-geo-projection, use:
Lets have a glance at the distortion characteristics and then move on:

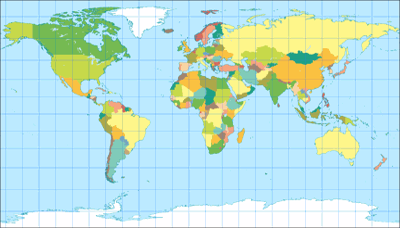

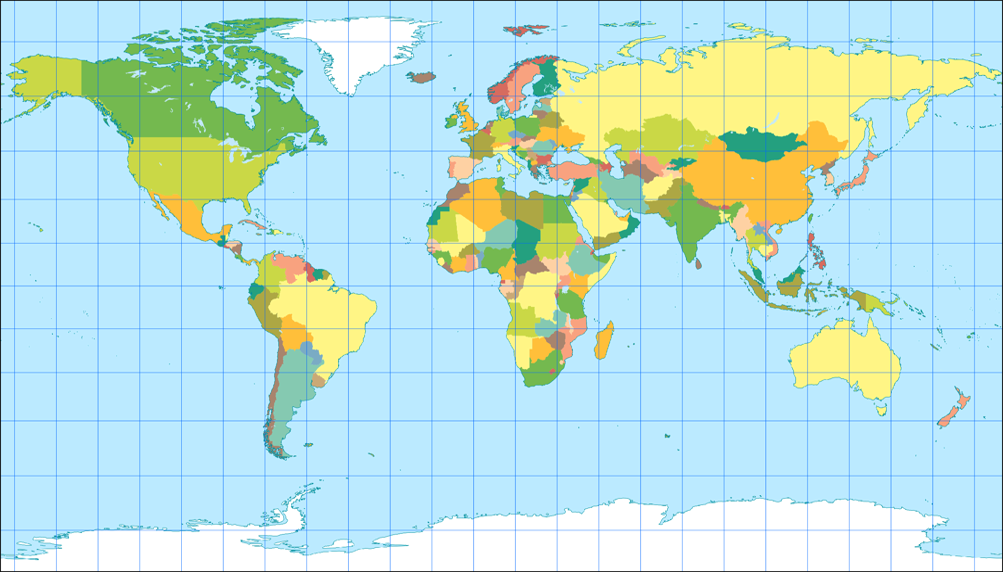

More than four years ago, I added the Patterson cylindrical projection – but the images I presented were wrong! 😱

There was a flaw in the map projection software I used for the Patterson images (G.Projector) so it was rendered with an width-to-height ratio of roughly 0.61 instead of 0.57 as specified. The flawed images were replaced by correct renditions. Current versions of G.Projector create a correct Patterson as well.
And while I was at it, I replaced the topographic map in the Patterson article with a new one that I like much better.

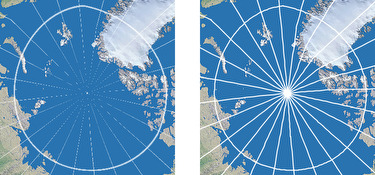

The next adjustment can be handled in a single sentence: Images of the Dymaxion projection had broken graticule lines – thanks to a new version of Justin Kunimune’s map projection software, this is fixed.


Two years ago I began to use new images for the Tissot indicatrix, but only for projections that were added thereafter. Now, I replaced some of the older Tissot images with the new version. Namely all that were shown above (Winkel Tripel, Ginzburg V, …).


  1. Philippe Rivière: Bertin Projection (1953)
  2. Demonstrating the transformation of the Briesemeister to get the Bertin-Rivière projection:
  3. János Györffy: Minimum distortion pointed-polar projections for world maps by applying graticule transformation
  4. Györffy uses lowercase letters to label his projections, but I found uppercase letters to me more legible.
  5. Wagner’s Umbeziffern and the Böhm notation:
